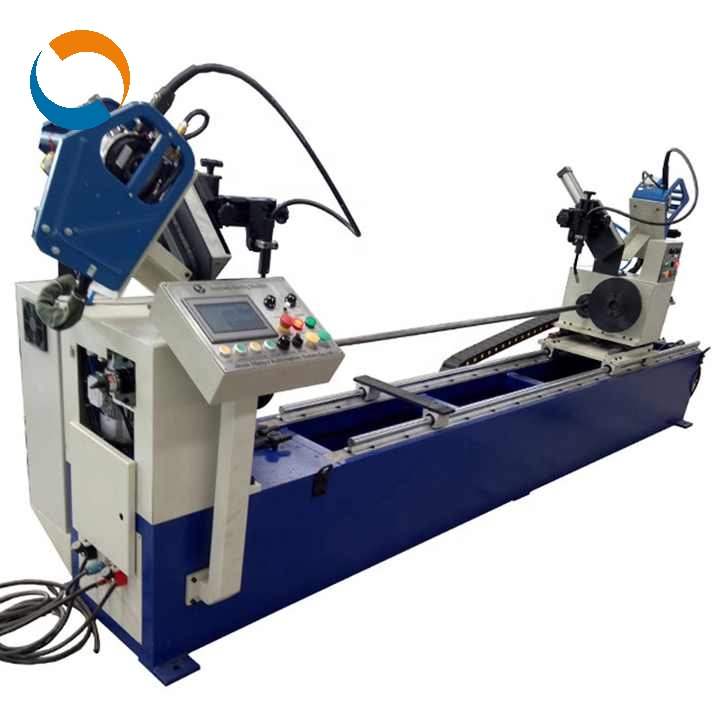

Product Description

Design task

· Welding machine for cuplocks and stoppers.There are 15pcs welding torch: 5pcs for cuplocks and 10pcs for stoppers.

· MIG welding type.

· Pipe∪lock will automatically moved to the 2ND stopper welding stage. Pipe will be automatically fixed in stopper welding machine (pneumatic), load and unload pipe conveniently.

· There are 10 sets welding power source totally. System will automatically control signal of wire feeder and welding power source.

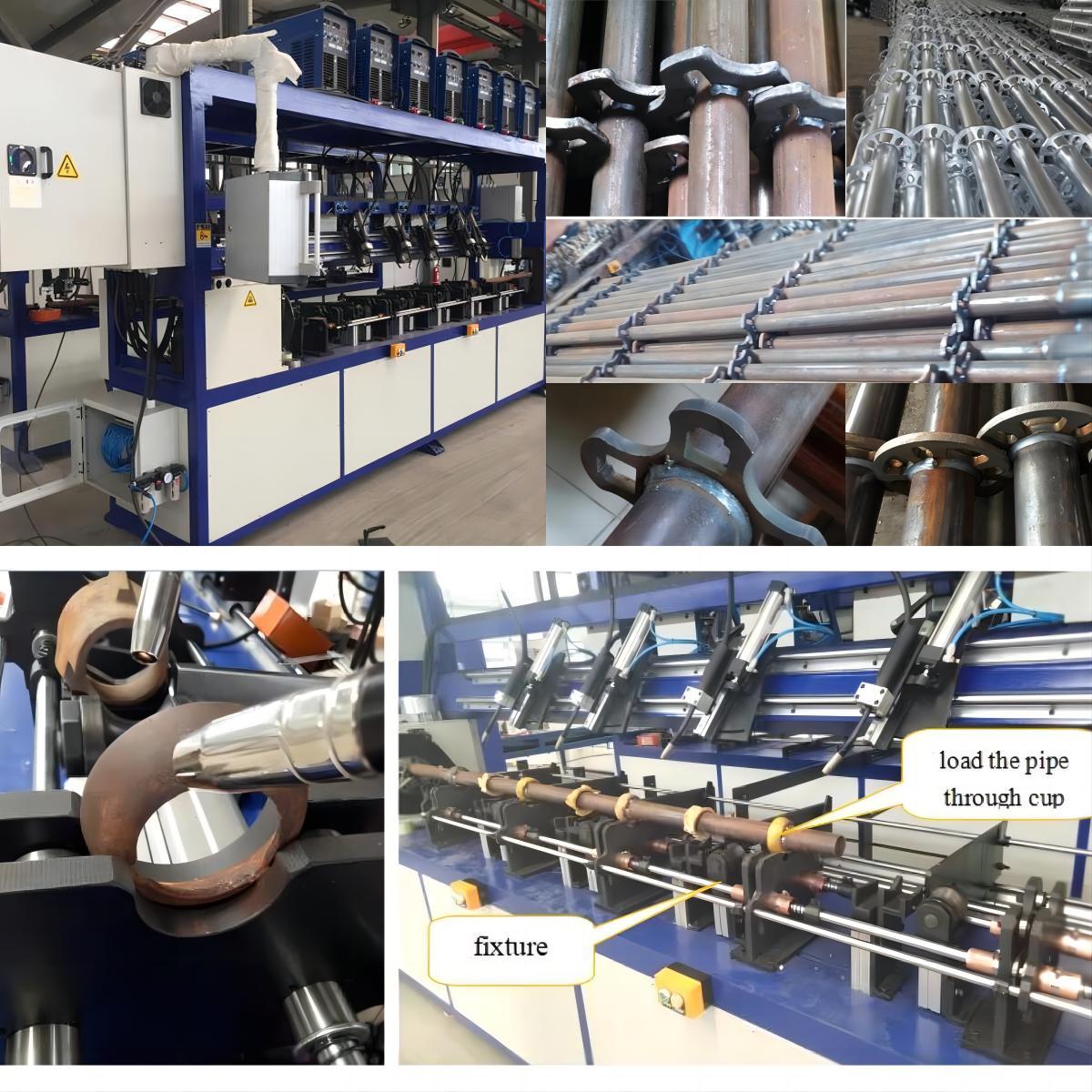

1. The 1ST assembly and cuplock welding stage----fix the components in located fixture. Automatically load the pipe through cuplocks. Pipe will be held by pneumatic rotary chuck. Machine will weld cuplocks automatically.

2. The middle conveyor stage--cylinder device will automatically push pipe∪lock to the conveyor stage.

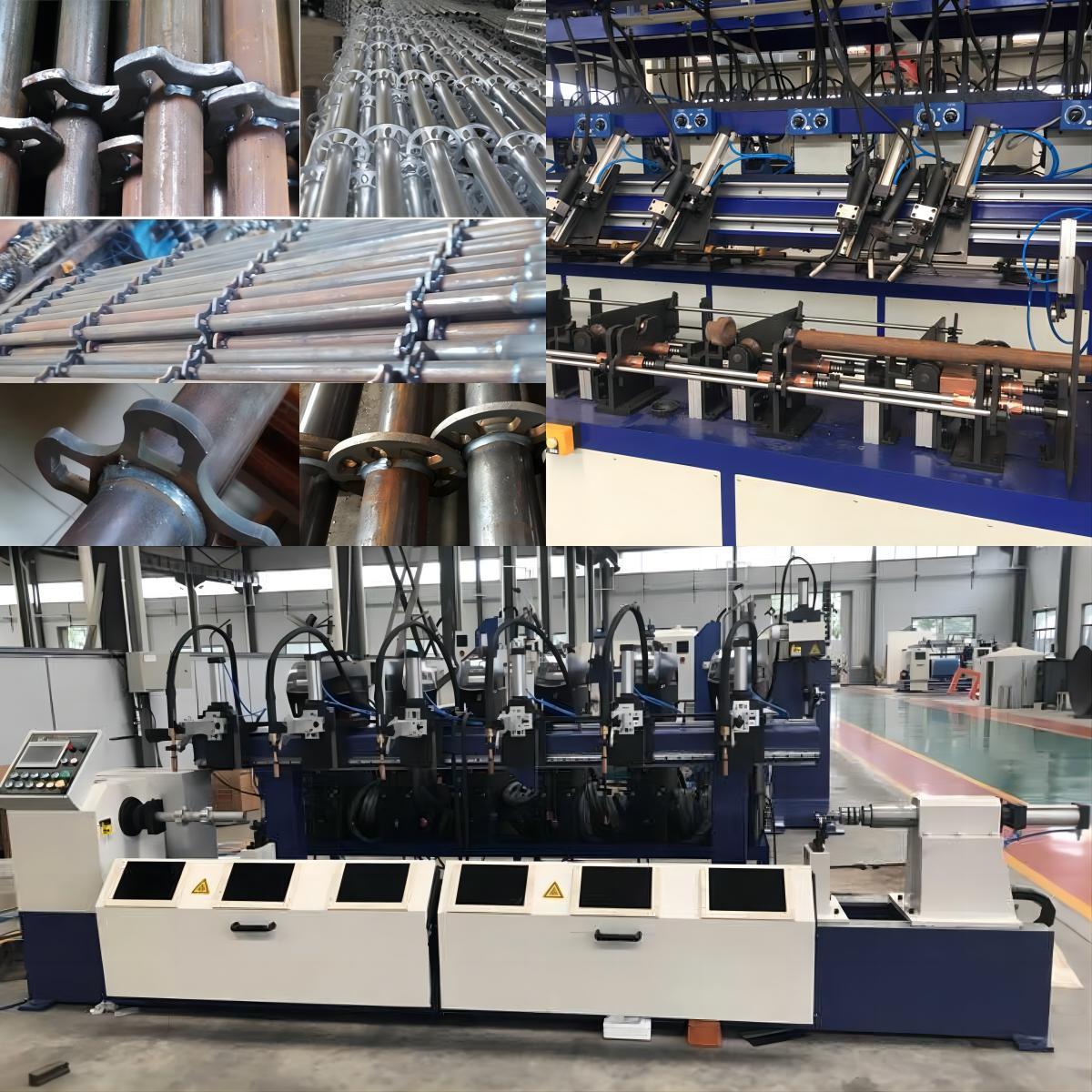

3. The 2ND stopper welding stage: pipe∪lock will be automatically moved to the stopper welding stage. Pipe will be loaded and uplifted by adjustable support, and held by pneumatic thimble. 30pcs stopper can be stored in the holder in advance. Next, stopper will be welded automatically.

4. At last, the last cylinder device will push pipe and unload it to the storage stand.

Pipe diameter50mm
Pipe length3m
Welding speed450-600mm/min
Program controlJapan OMRON PLC and touch screen
Loading capacity800KG
Air pressure0.6MPA
Welding torch moving range100mm
Rotation degree360°
Machine working voltage380v 3phase 50hz
Welding power sourceChina AOTAI 350A (AMIG350)

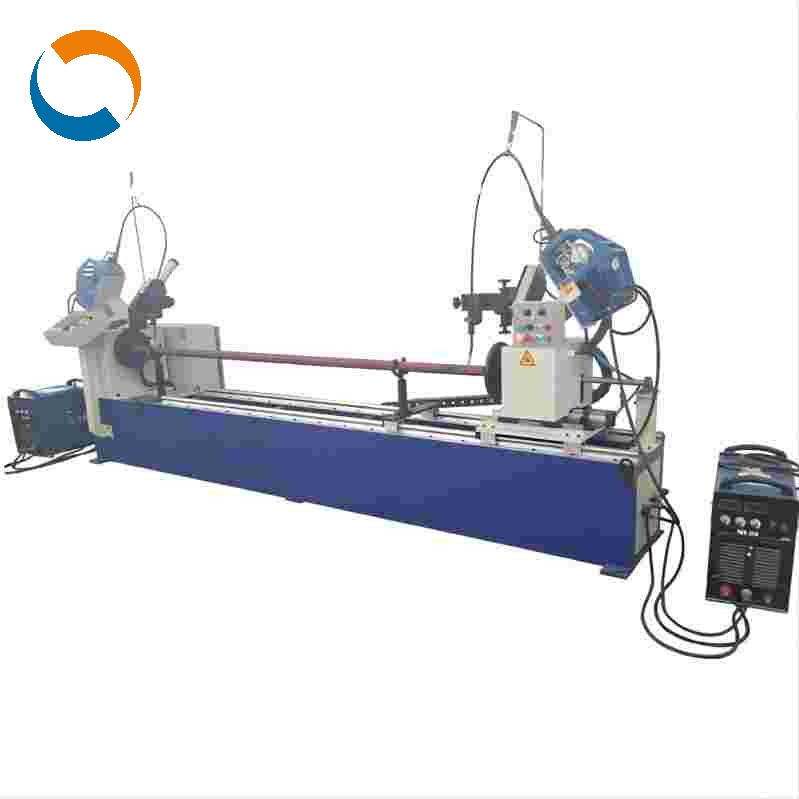

Product Display



CUSTOMER VISIT

FAQ

Question 1 :How to customized a automatic welding machine for your workpiece ?

Answer: Please tell us below information ,then we can design for your workpiece:
1.1  the material of your workpiece
1.2 ,the length ,width,thickness of your workpiece or send the drawing of workpiece ,if there are different size workpiece ,tell us the range (Min and max )
1.3 it is better to give us the Workpiece real picture .


Question 2: What is the core components of automatic welding machine ?

Answer : based on different Automatic welding machine,there are mainly including PLC ,CNC control system,inverter ,servo motor with driver ,welding power source,.welding torch ,robotic .pneumatic control system.

Question 3:Is possible to design Multi-station with more welding torch ?

Answer :yes ,it is ok we can design one torch or two torch or more welding torch work station to increase

Question 4: What is the brand of the core components in the automatic welding machine

Answer :All core components are famous china brand or international brand ,such as :Welding power source ,we usually use OTC and Panasonic brand.if you need Lincoln welding power source or Miller Lincoln welding power source is ok ,we also can use it on our welding machine .
For PLC : We usually use Omron and Siemens PLC, Customers can specify the brand
For robot :We usually use OTC ,YASUKAWA ,ABB or kuka ,or Customers can specify the brand.

Question 5:How many kinds of our Welding machine ?

Answer: Based on welding power source : there are automatic TIG welding machine ,automatic MIG welding machine ,automatic submerged arc welding machine(automatic SAW machine)
Based on application : there are Automobile parts welding machine,Automatic scaffordding welding machiine ,pipe to flange Automatic welding machine ,Tank Automatic welding machine,Hydraulic cylinder piston rod Automatic welding machine,wheels Automatic welding machine and so on .
Based on welding seam type : circular/girth seam welding machine ,longitudinal /straight seam welding machine ,Square seam welding machine.irregular seam welding machine

Question 6: Is it possible to extend Warranty time ?

Answer: Yes,our warranty time usually is 1 year for free ,but can be extended as required ,the price is a little expensive .no matter how long the warranty time ,our After-sale service is lifelong .
