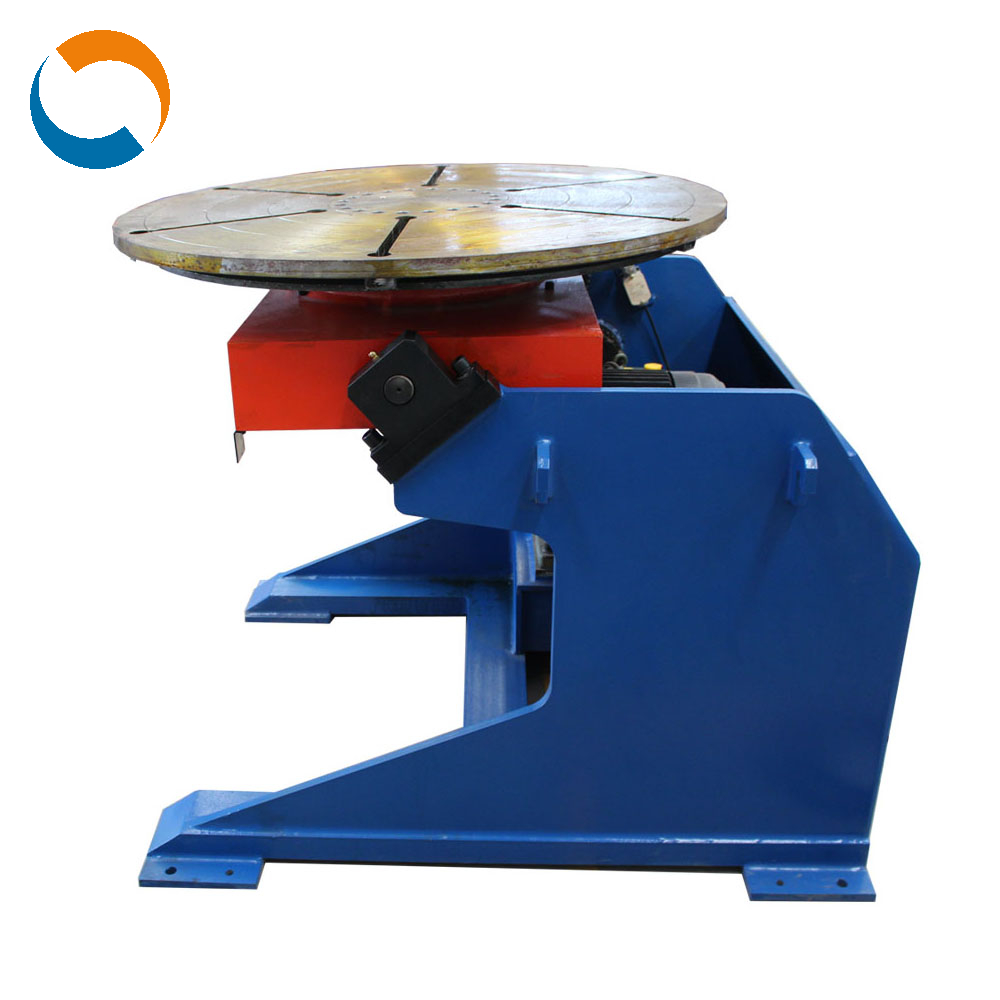

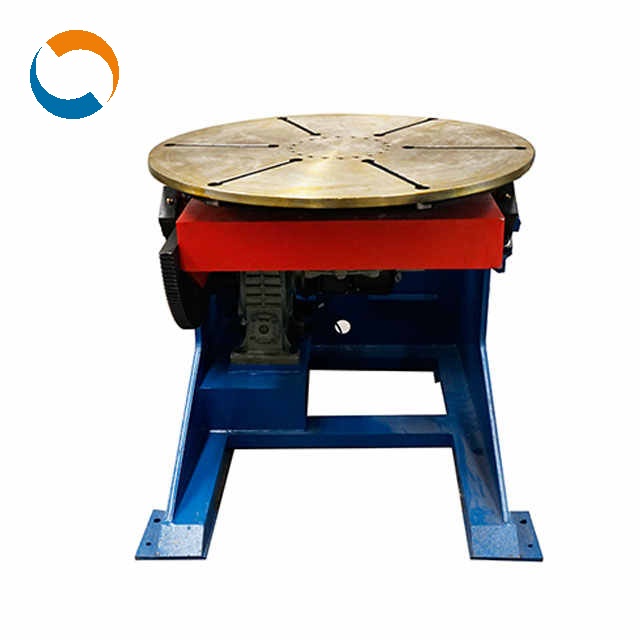

Product Description

The welding positioner is a practical auxiliary positioner. It is mainly used in workplaces such as welding of steel structures and assembly of mechanical parts. It is widely used in the manufacturing industry of various steel structures such as flanges, pipe joints, etc. It can also be used as peripheral equipment and a robot to achieve automatic welding. It is one of the commonly used equipment in modern pipeline, container, and steel structure manufacturing enterprises.

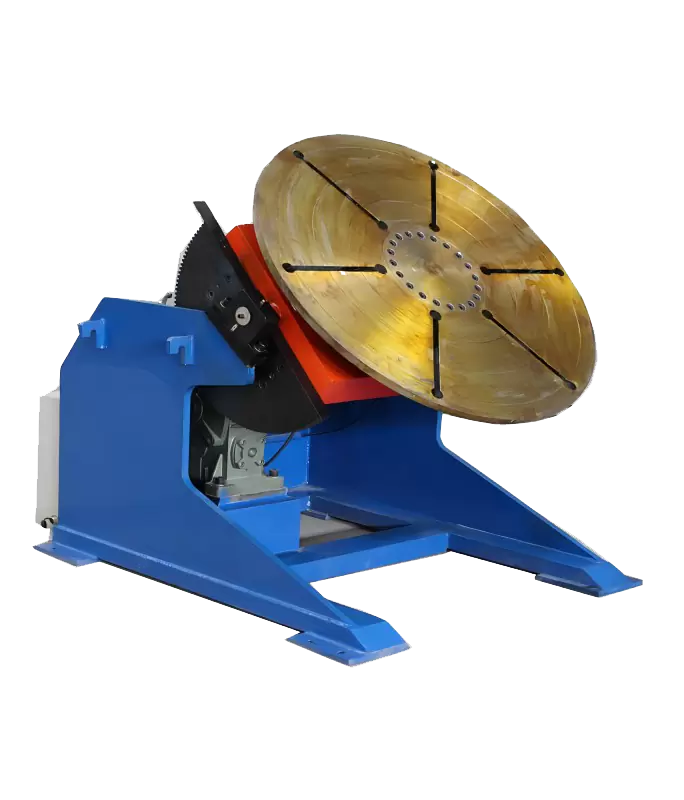

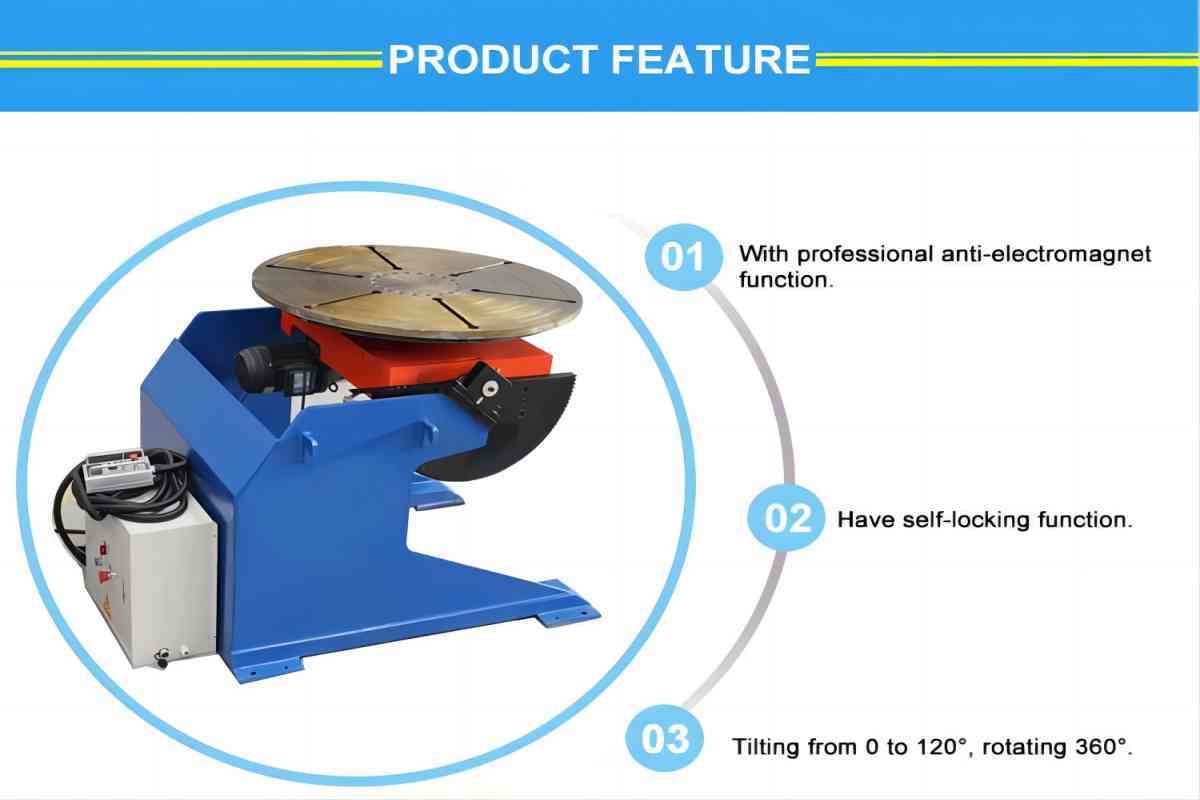

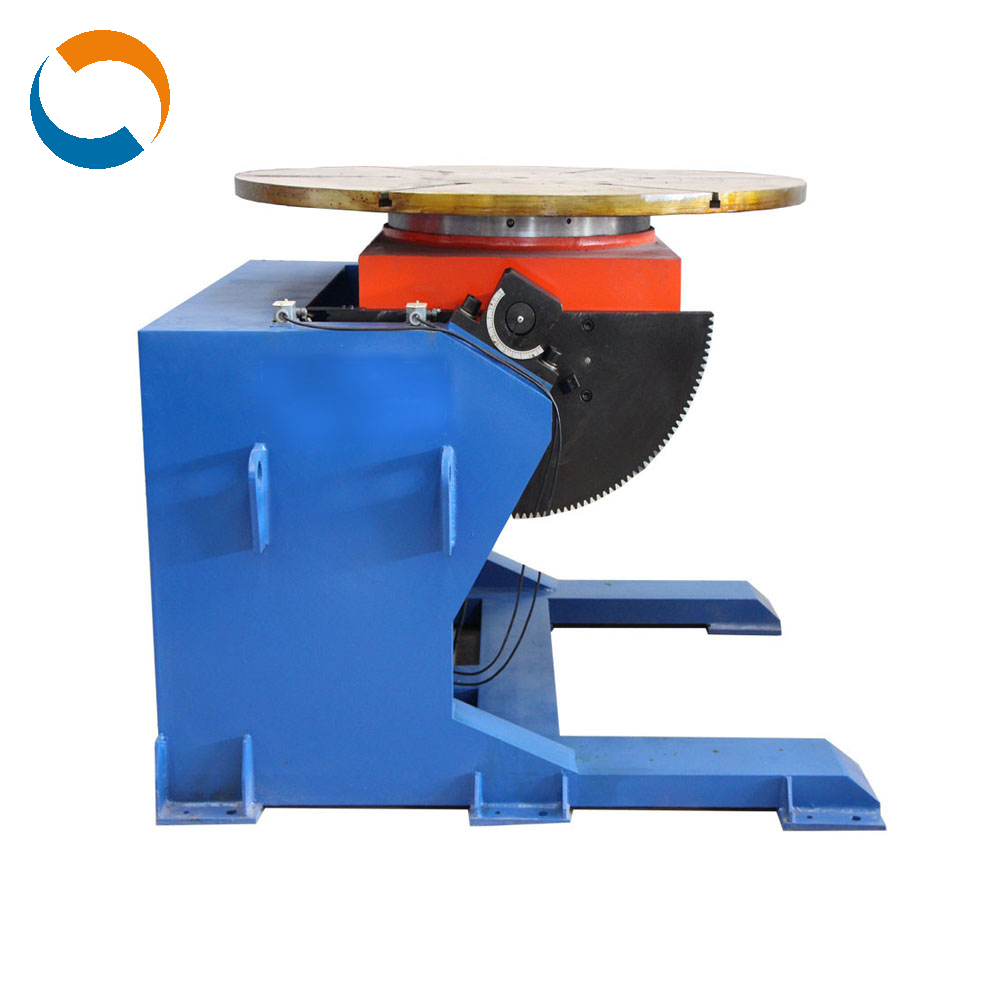

The seat-type positioner is composed of a rotating mechanism, a turning mechanism, a frame, and an electronic control system. It rotates and flips the worktable to make the workpiece in the optimal welding or assembly position. The rotation of the worktable adopts stepless speed regulation by frequency conversion. The worktable is driven to tilt by sector gear or hydraulic cylinder.The rotation angle of the worktable is 0 ~ 120 °. It can realize joint control with an operation machine or welding machine. The control system can be configured with three types of configurations: push-button digital control, switch digital control, and switch relay control.


The seat positioner can be used with various automatic welding or manual welding, can be used for pipe and pipe butts welding, pipe end welding, and various shafts, disks, cylinders, and other workpieces. It has a compact structure, beautiful appearance,and convenient operation. Etc. The seat positioner is currently the most widely used structural form. In production, it can not only improve the welding quality, but also reduce the number of work transfers, reduce labor intensity, and quickly improve production efficiency.

Model No.BW2-10BW2-20BW2-30BW2-50BW2-100BW2-150BW2-200
Basic loading (kg)1200200030005000100001500020000
Rotating speed(r/min)0.1~10.1~10.06~0.60.05~0.50.05~0.50.02~0.20.02~0.2
Overturning speed(r/min)0.370.370.370.370.370.150.2
Turning angle(°)120
Work table diameter(mm)1000110014001600200022002500
Height of work table(mm)1100120015001550190020002100
Allow work piece off-center(mm) Eccentricity150150200200200200200
Allow work piece off-center(mm) Centroidal distance250250300300400500600
Rotating motor power(kw)0.751.51.52.2345.5
Turning mootr power(kw)0.751.51.5345.57.5

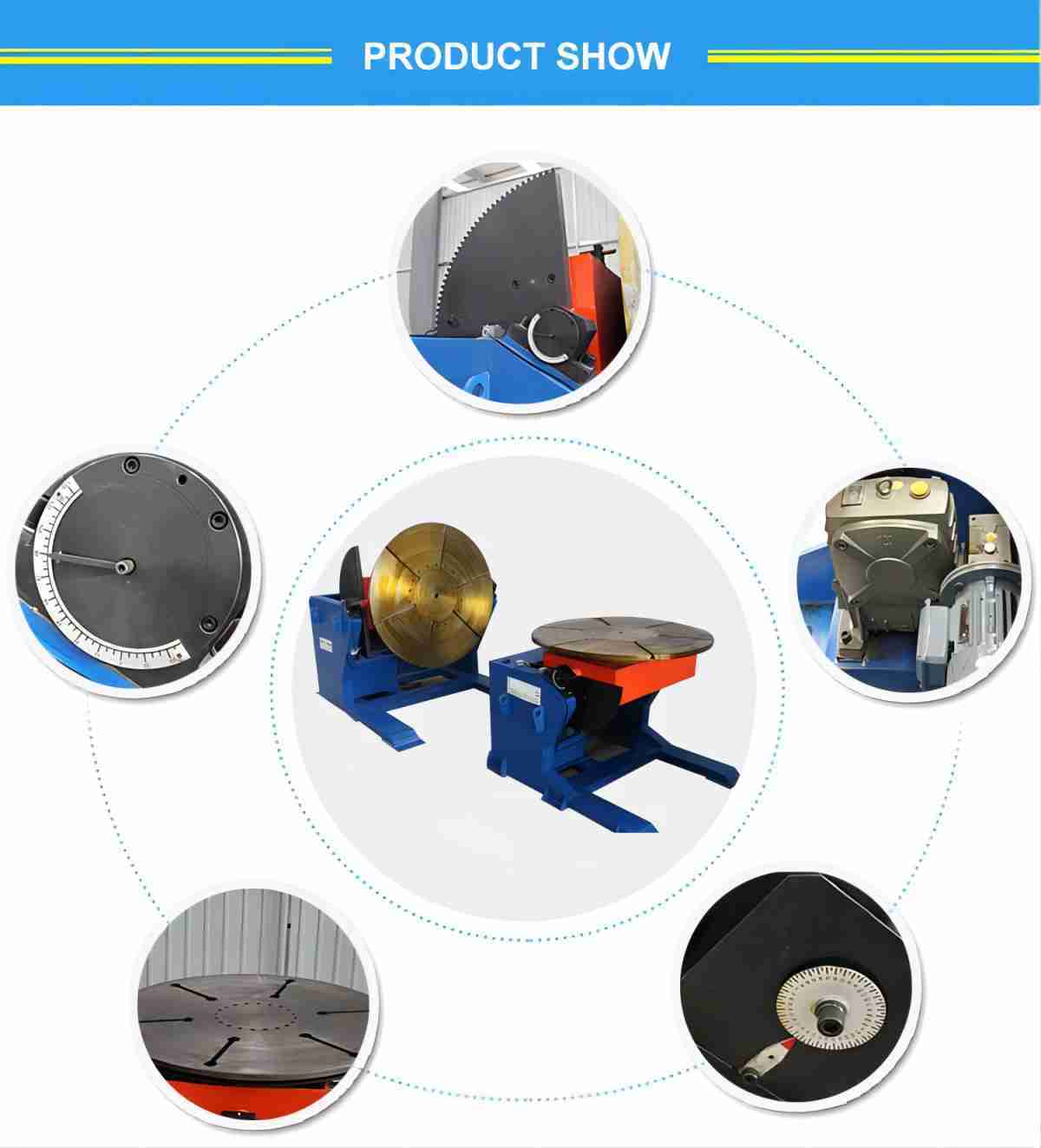

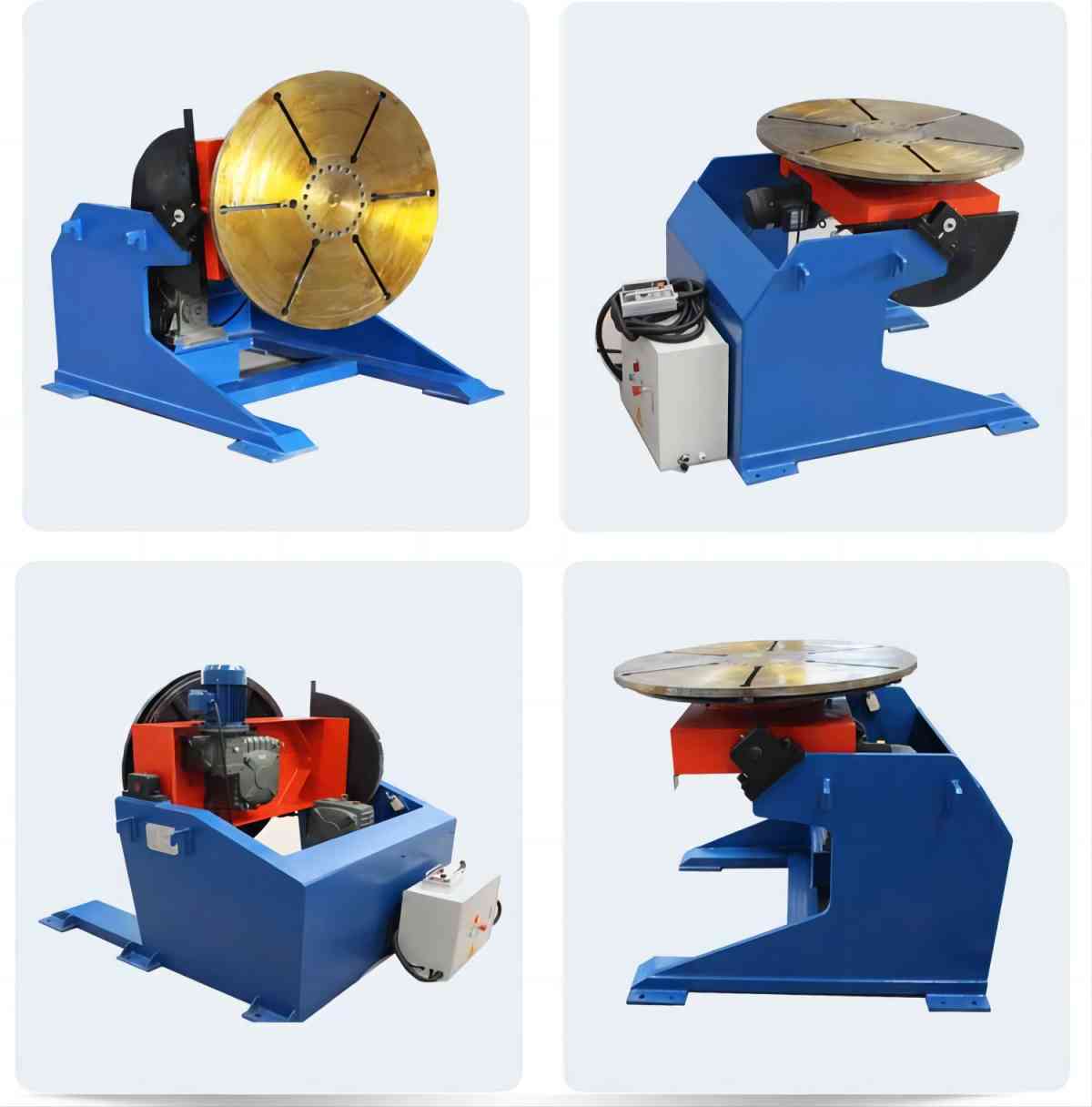

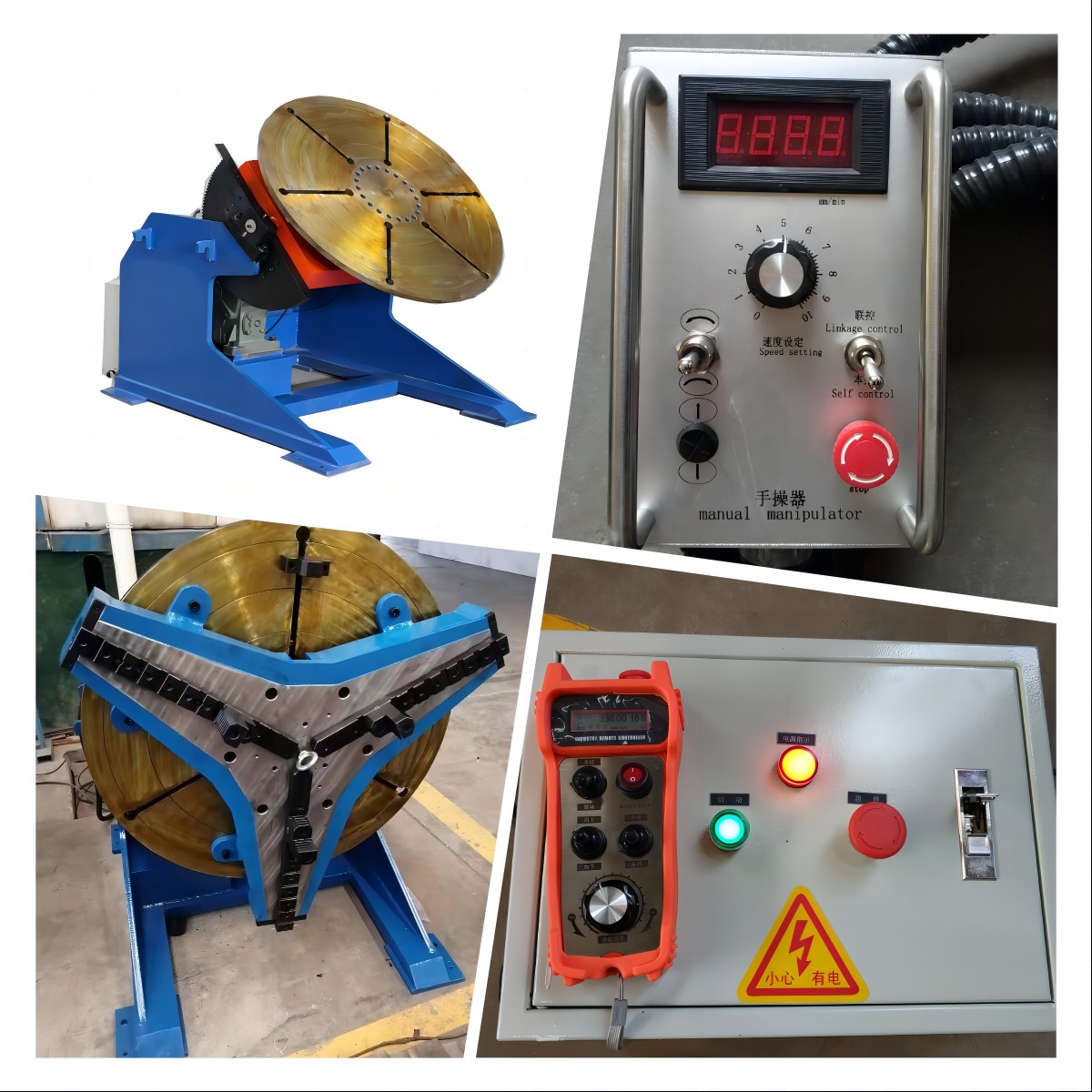

Product Display
